Understanding Technical Drawings

Interpreting Isometric and Orthographic Drawings

  • Print the following Isometric and Orthographic drawing sets
  • Match the isometric drawings in the first image with the orthographic views in the second image (i.e., match numbers with letters).  Label each view correctly

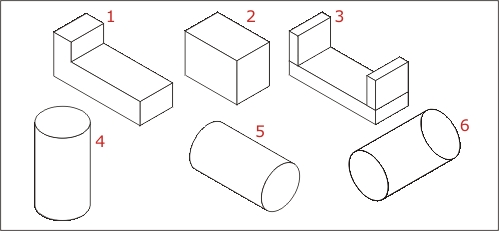

Figure Isometric Drawings

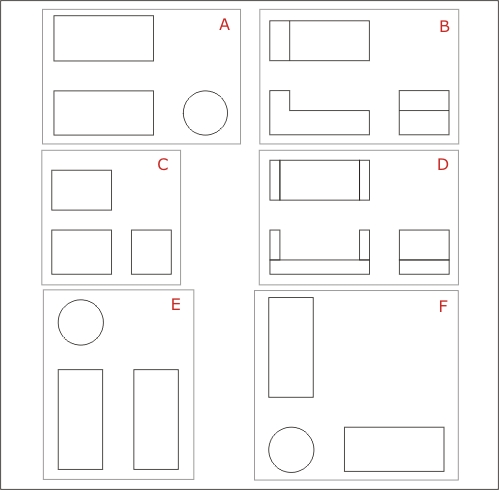

Figure Orthographic Views

When you are done, make an appropriate entry in your course portfolio.
